| System | |
|---|---|
| Processor | Intel® Core™ i5 7300U |
| Memory | 8GB, 2 x DDR4, 2133MHz (1.2V) |
| Memory extension | up to 32GB |
| Free memory slot | 2 x 4GB |
| Memory device | hard drive, 128 GB SSD, expandable |
| Wi Fi | Wi-Fi 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 4.0 |
| External I / O | |
|---|---|
| USB ports | 6 x USB (4 x USB 3.0, 2 x USB 2.0) + 2 x USB 2.0 quick access ports |
| Serial port | 2 x COM ports DB9 connectors (2 ports with power: 5V or 12V, enabled by BIOS) |
| LAN | 1 x RJ-45 (10/100/1000Mbps Gigabit LAN) |
| Cash drawer port | 1 x RJ-11 (12V/24V) |
| Display port | 1 x HDMI |
| DC socket | 1 x 12V, 1A (enabled in BIOS) |
| RJ-45 rear | 1 x RJ-45 connector on rear for second display |
| Expansion | |
|---|---|
| Mini PCIe socket half size | 1 PCIe/USB2.0 interface, used for Wi-Fi/BT |
| Mini PCIe socket full size | 1 PCIe/USB2.0/SIM interface, used for LTE |
| M.2 interface | 1 x M.2 B-key 2242, 2280 SATA |
| Power | |
|---|---|
| Power adapter | 12V, 5A |
| System control and monitoring | |
|---|---|
| Button, switch and indicator | 1 power button |
| Physical parameters | |
|---|---|
| Operating temperature | 0°C to +45°C |
| Storage temperature | -20°C to +80°C |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 10% to 90% RH non-condensin |
| VESA mount | 100mm x 100mm VESA mounting hole for panel PC type |
| Weight | 5 kg (w/o PSU) |
| Dimensions | 219 x 222 (base), height: min. 290 / max. 442 |
| Approvals | EMC & Safety: FCC, CE, RCM, IMDA (others on the request) |
| Display | |
|---|---|
| Size | 15” LED LCD |
| Type | Projected Capacitive with 10 touch points |
| Touchscreen |  |
| Resolution | 1024 x 768 |
| Brightness | 300 cd/m² |

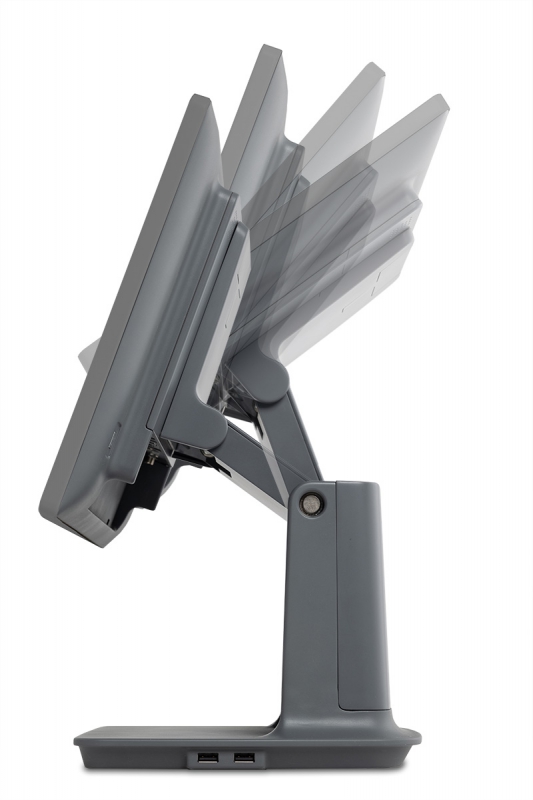

| Tilt adjustment | 90° |
| Software | |
|---|---|
| Sales software | Microsoft Windows® 10 Enterprise 2019 LTSC |
| OS Support | Other Windows10 variants, Android, Linux (TBC) |
| Options | |
|---|---|
| LTE/4G module | Category 4, Max 150Mbps (DL)/Max 50Mbps (UL) (option) |

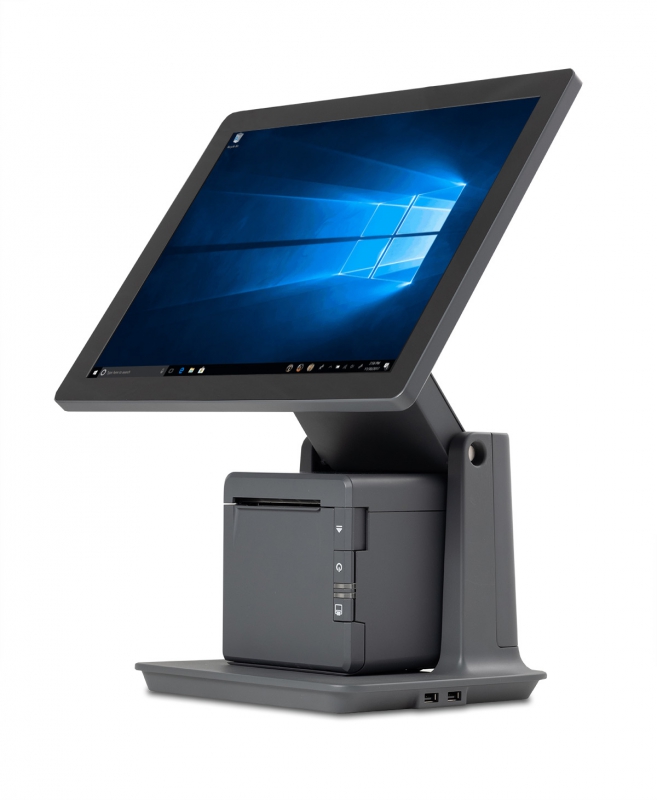

| Printer | CHD TH508 (option) (short PRN cable available) |

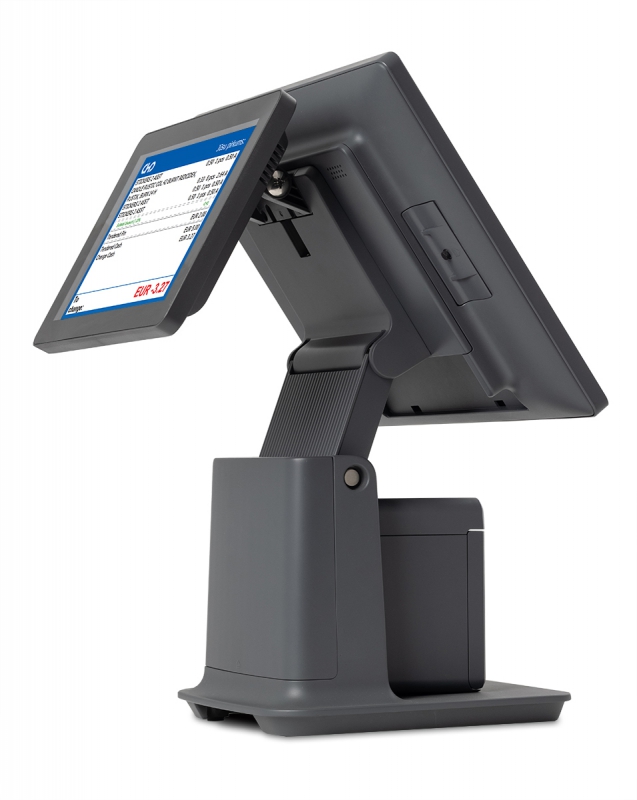

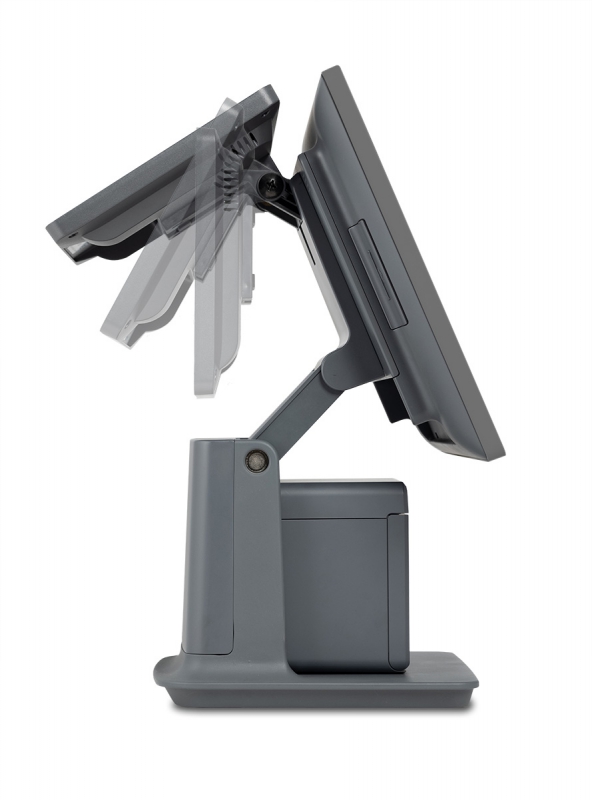

| Customer display | 5,2" 2x20 LCD with NFC, 10,1’’ or 15’’ LCD display with or without touch (option) |
| i-button | Yes (option) |
