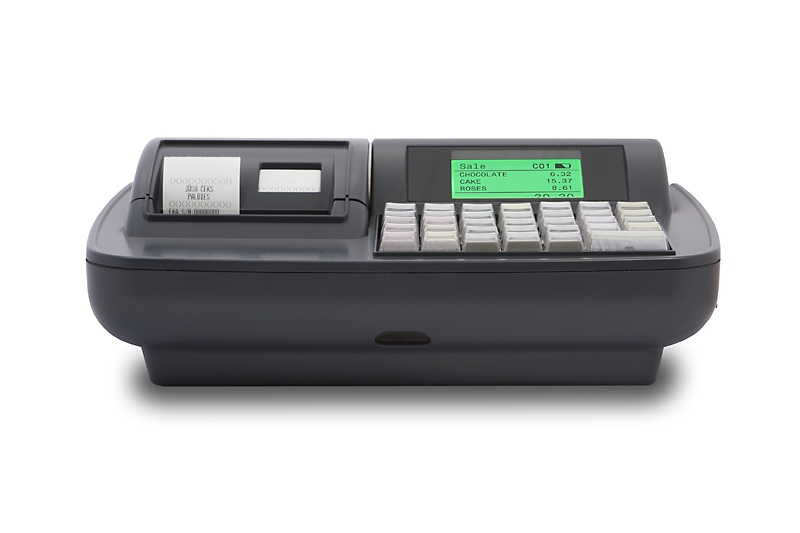

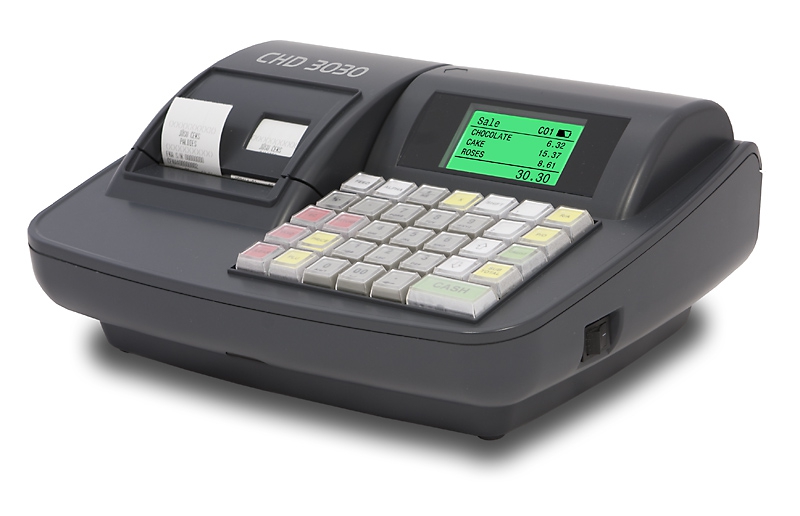

The entry level, small size cash register CHD 3030 is created for small to medium size retail locations. This cash register, despite its compact size, incorporates the full functionality of a standard cash register. And even more - it has a graphic LCD screen, PC communications options, easy receipt loading system and an optional UV light for checking the banknotes.
SYSTEM OPTIONS SETTINGS
| ECR parameters | |
|---|---|
| PLU count | 5000 |
| PLU groups | 100 |
| Departments | 8 |
| Taxes | 9 |
| Payments | 3 |
| Currencies | 5 |
| Users | 20 |
| Graphical logo |  |
| Reports | Financial, Departments, PLU, Clerk, In-Drawer, Hourly |
| Electronic journal | |
| Physical parameters | |
|---|---|
| Dimensions | 22 x 28 x 12 cm |
| Weight | 1.6kg |
| Case | Plastic |
| Operation temp. | 0ºC līdz +45ºC |
| Humidity | 10% - 90% |
| Keyboard | Stroke |
| Number of keys | 34 |
| Sound indicators | Yes |
| Operator display | LED, 1x10 numeric |
| Customer display | Graphic, 128x64 dot |
| RS232 Interface | 2x |
| USB | |
| UV detector | Yes |
| Cash drawer port | |
| Printer | |
|---|---|
| Printer type | Thermal |
| Printer reliability | 50 km or more |
| Print speed | 60 mm/s |
| Number of columns | 20 symbols x 2 |
| Printer width | 38mm |
| Paper roll diameter | 50 mm |
| Thermal paper rolls | 38mmx30m |
| Battery | |
|---|---|
| Additional battery | |
| Battery type | 1100mAh or 2100mAh |
