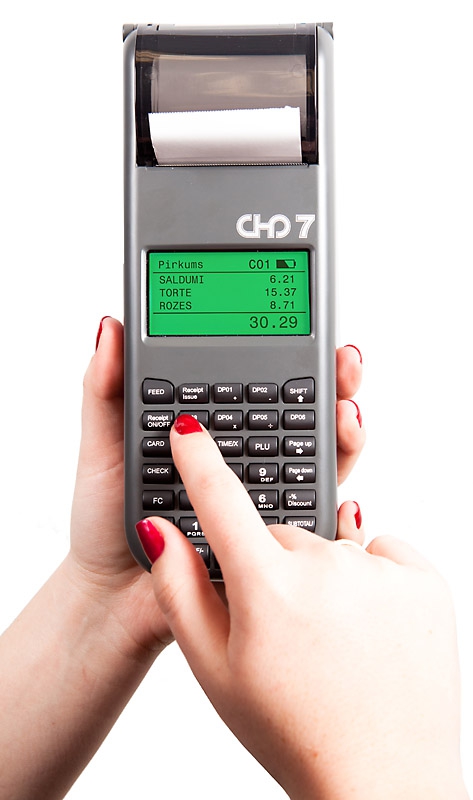

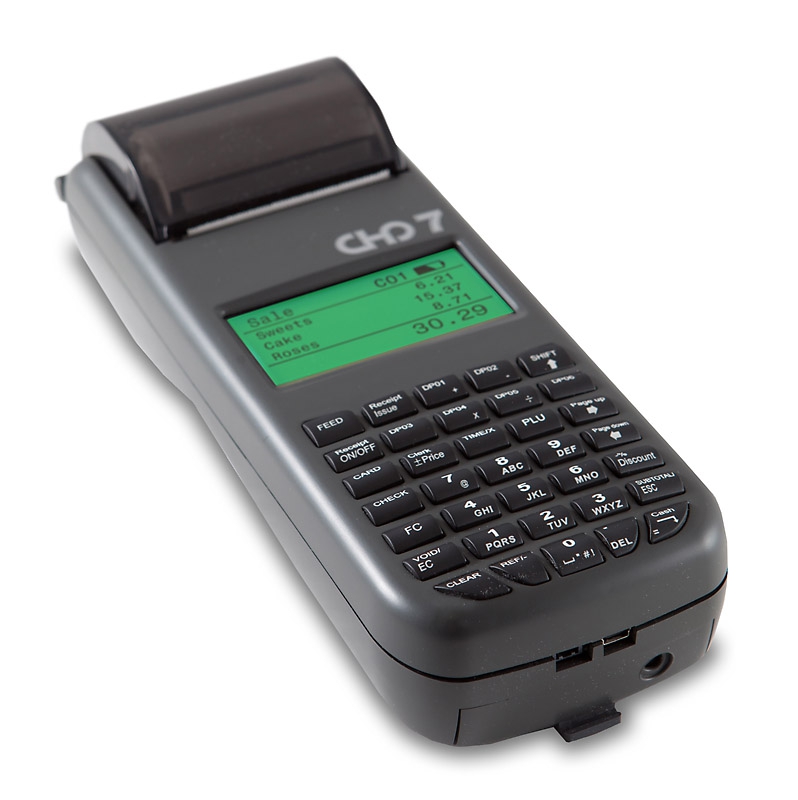

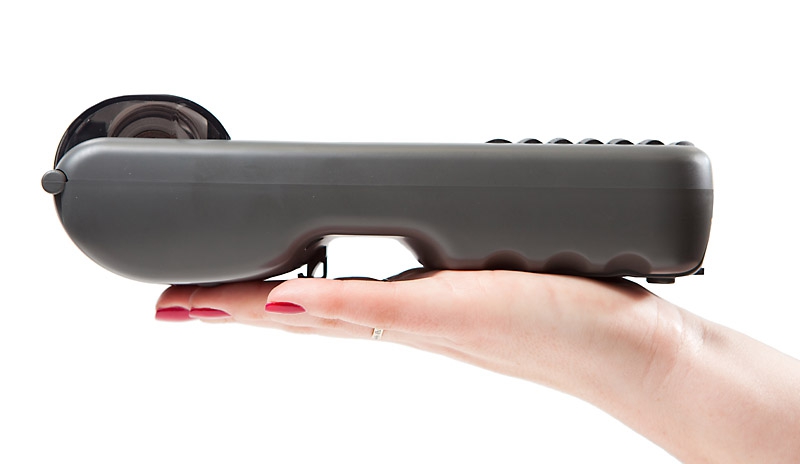

CHD 7 is a mobile cash register. CHD 7 is the ideal solution for small retail locations, where compactness and mobility are the determinant factors. The compact and modern design of the cash register allows convenient work either holding it in hand, or placing it stationary on the counter. The large LCD display and backlit keyboard provide handy work with the cash register in any conditions. CHD 7 weighs only 500 grams!
Functionality
Despite its compactness, CHD 7 incorporates all the functions that are necessary for daily work with the cash register. Also communication between CHD 7 and computer is possible for sending the new items to the cash register and for reading the sales data from the cash register. Now together with the cash register we offer computer application that allows to conveniently send the items to the cash register and to receive sales reports and view them in Excel type applications. You can download ECR Configurator software for easy work with the cash register at our home page.
Barcode Scanner
For already many decades barcodes make the work of salespersons easier. Up to now barcode scanner has been a device that is connected to the cash register. With CHD 7 we have created a cash register with already integrated barcode scanner – thus full mobility is provided at the retail location. Choose CHD 7 model with the in-built barcode scanner, if the items at your retail location are labelled with barcodes!
Mobility in Movement
Choose CHD 7 version with the in-built GSM/GPRS wireless data transfer module and gain the opportunity to transfer data while moving!
Power Supply

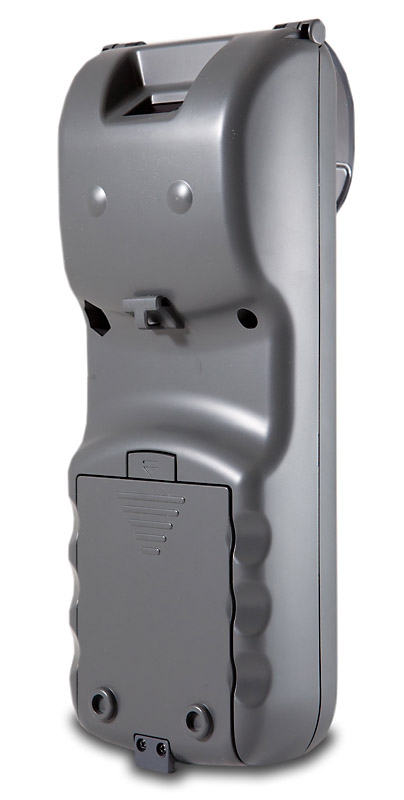

Powerful battery provides mobile work with the cash register for up to 8 hours. If it is necessary to work with CHD 7 for longer hours – change the empty battery with a charged one and continue the work. We have attributed the principle of compactness also to battery charging – external charging base is not necessary for charging the CHD 7 battery! To charge the battery, simply connect the charging cable to it.
CHD 7 with barcode scanner and GSM/GPRS data transfer function has separate device modifications.
ECR parameters | |
---|---|
PLU count | 5000 |
Departments | 8 |
Payments | 3 |
Currencies | 5 |
Users | 20 |
Graphical logo | |
Header | 7 lines |
Reports | Financial, PLU, Departments, Clerk, Hourly, In-Drawer |
Electronic journal |
Physical parameters | |
---|---|
Dimensions | 85 x 220 x 50/65 mm |
Weight | 0.5 kg |
Case | Plastic |
Operation temp. | -10С to +48С |
Keyboard | Stroke, with symbols |
Number of keys | 35 |
Sound indicators | Yes |
Operator display | LCD, 128x64 dot |

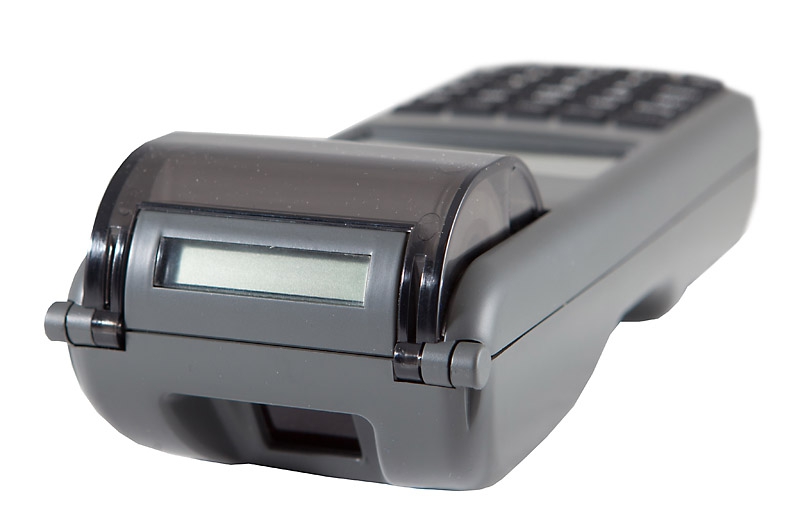

Customer display | 1 x 10 numeric |
RS232 Interface | 1x |
USB | |
GSM/GPRS | Aditional option |
Communication ports | 1xUSB, 1xRS232 |
Power supply | 9V, 1A |
Printer | |
---|---|
Printer type | Thermal |
Printer reliability | 50 km or more |
Print speed | 60 mm/s |
Printer width | 58mm |
Thermal paper rolls | 57mmx10m |
Battery | |
---|---|
Additional battery | |
Battery type | Li-Ion |
Operating duration | Up to 8 hours |
Scanner | |
---|---|
Scanner | Option |
Scanner type | Laser, 1D |
